Description
Parameter | Specification |
---|---|
Body Material | Aluminium |
Color | Black/White |
Unfolding Size | 1830mm × 640mm × 1170mm |
Hub Form | Spoke wheel |
Wheel Size | 27.5 inches |
Package Size | 1540mm × 270mm × 870mm |
Gross/Net Weight | 32.9kgs / 26.4kgs (72.53lbs / 58.21lbs) |
Maximum Load | 120kg (264.55lbs) |
Maximum Speed | 25Km/h (15mph) |
Mileage | 40-80KM (Affected by load, temperature, road conditions, riding mode, etc. E.g: At 70kg and 25°C, the max. range in electric mode can reach 35KM, and the moped range depends on the load and riding style) |
Maximum Climbing Angle | 25 degrees |
Proper Temperature | -10~45°C |
Waterproof Level | IP54 |
Battery Type | 18650 Li-ion power battery |
Battery Capacity | 12Ah |
Battery Rated Voltage | 36V |
Motor Rated Power | 250W |
Motor Form | Boost |
Motor Type | 27.5/High-speed gear/spoke wheel brushless motor |
Motor Rated No-Load Speed | 380+10r/min |
Charger Output | 42V 2.0A |
Charger Input | 100~240V 50/60Hz 3.0A |
Undervoltage Protection Value | 29V |
Overcurrent Protection Value | 15A+1A |
Charging Time | 6.5-7 hours |

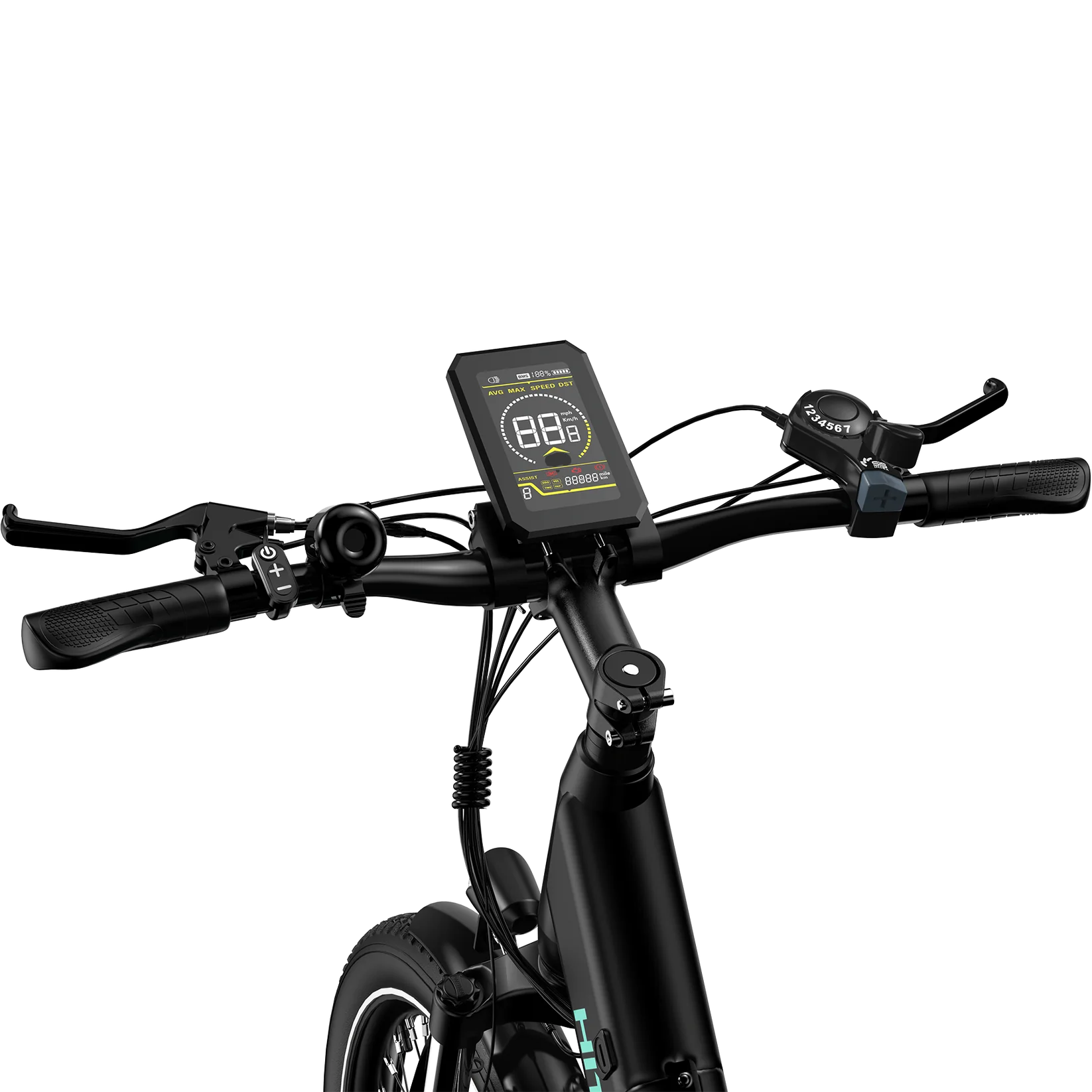

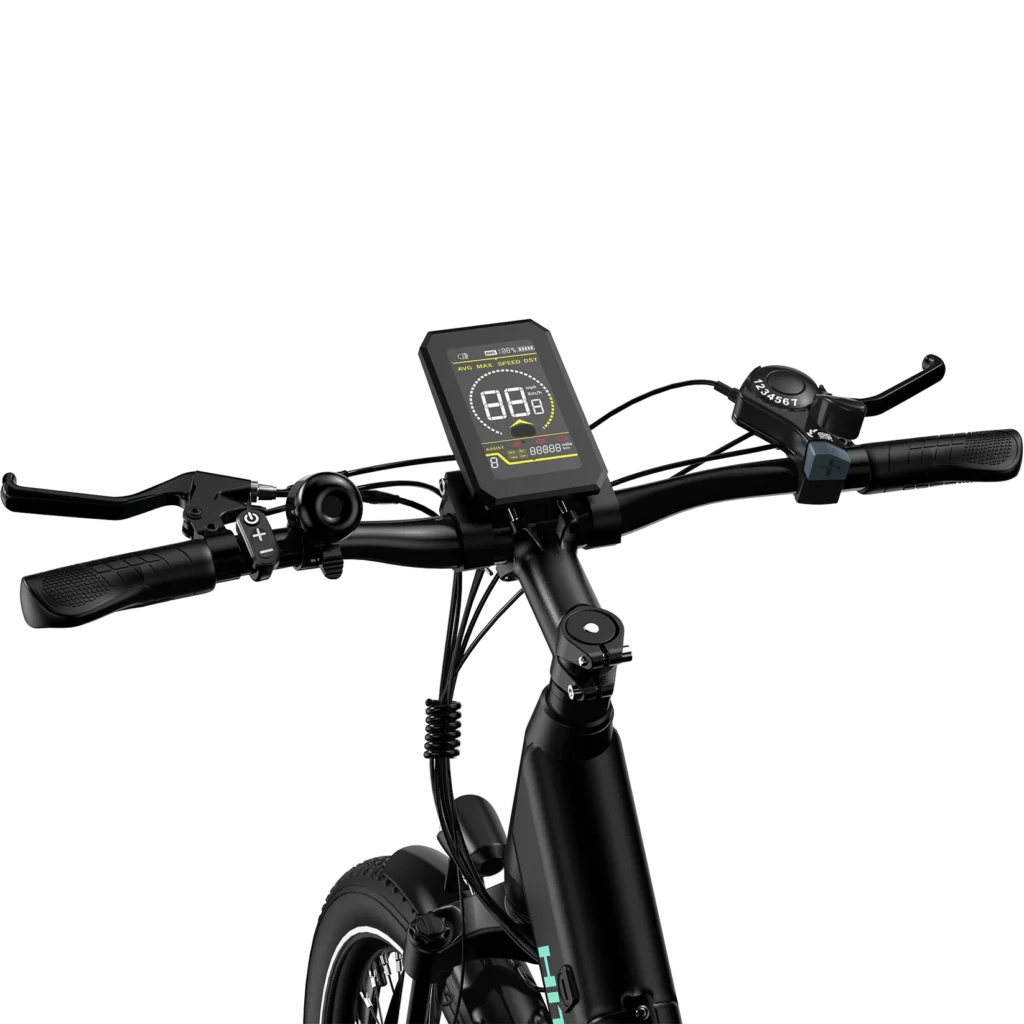

Instrument Display | Multifunctional LCD screen |
Front Lighting | YES |
Braking Method | Front disc brake + Rear disc brake |
Tire Specifications | Pneumatic tires |
Tire | 27.5×2.8 |
Air Valve | 27.5×2.8 (The inner tube valve is AV) |
Front Fork | Shock-absorbing front fork |
Gear | 7-Speed transmission |
