Description
Parameter | Specification |
---|---|

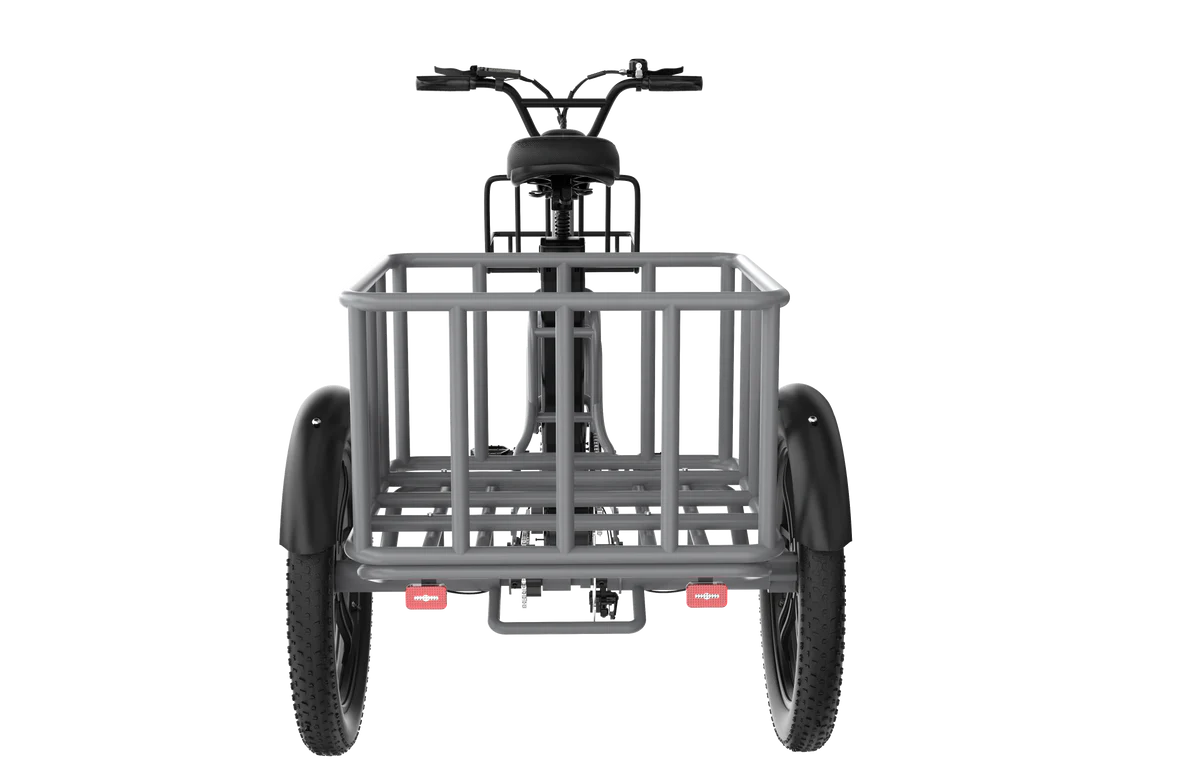

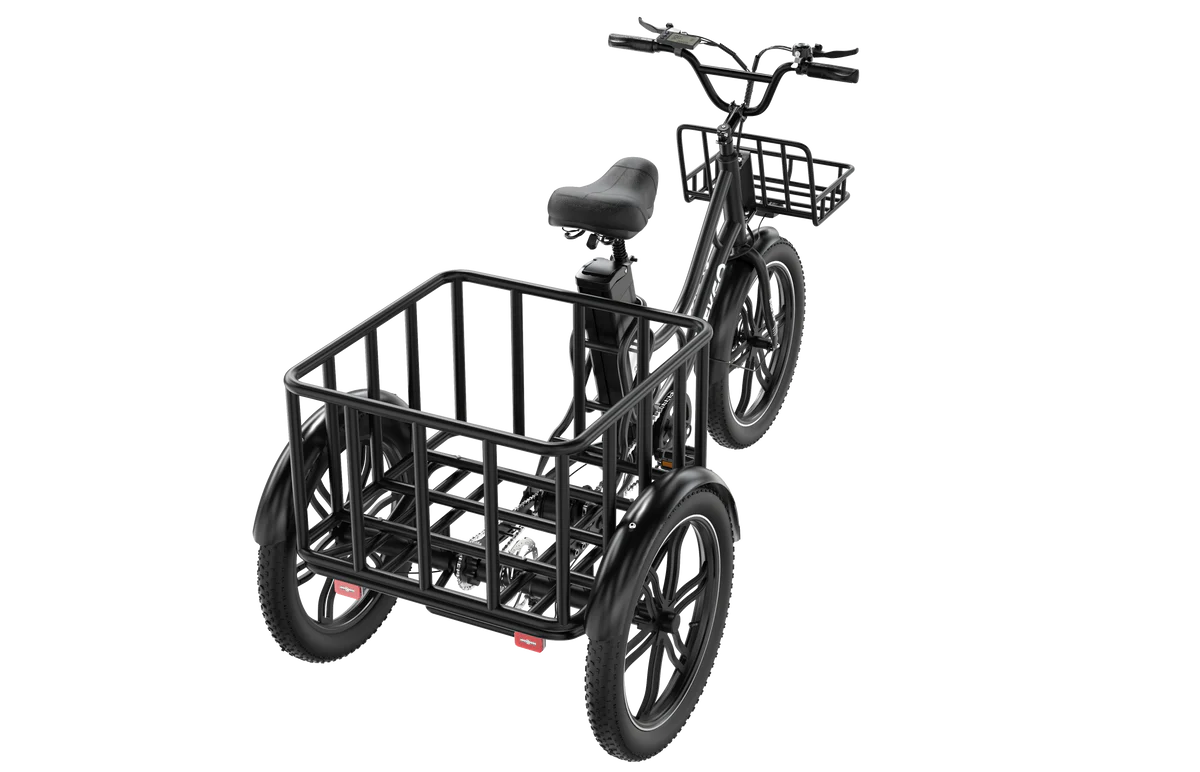

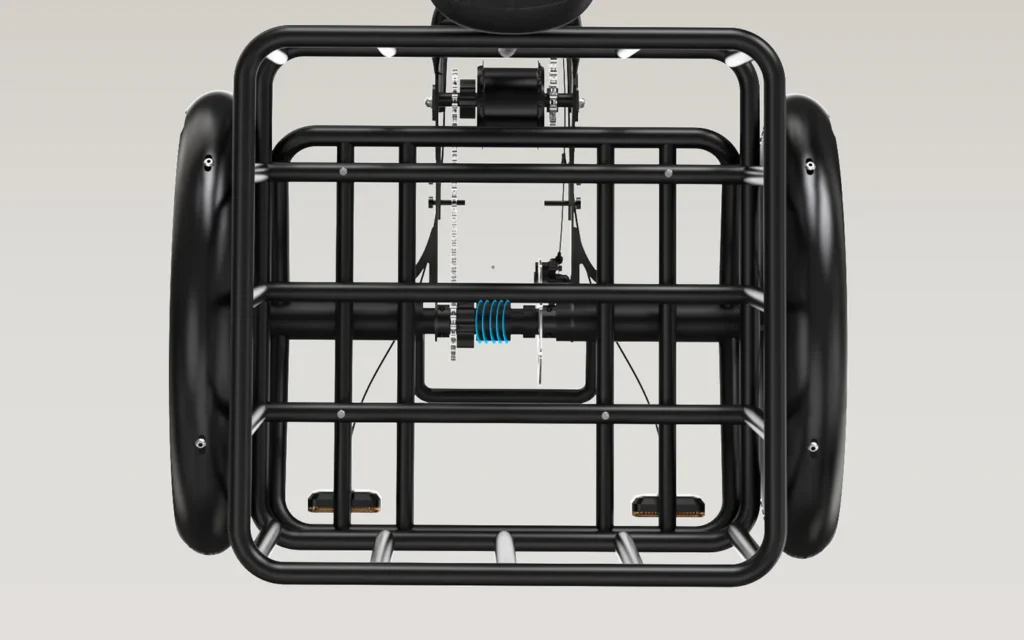

Product Name | EGO 03 Electric Tricycle |
Body Material | Carbon Structural Steel |
Color | Black/Grey |
Unfolding Size | 180×80×97CM (70.87×31.5×38.19inch) |
Hub Form | Integrated wheel |
Wheel Size | 20 inches |
Package Size | 99×80×65CM |
Gross/Net Weight | 62.5KG/57KG (137.79lbs/125.66lbs) |
Maximum Load | 130KG (264.55LBS) |
Maximum Speed | 25KM/H (15MPH) |
Mileage | 40-60KM (Varies based on load, temperature, road conditions, and riding mode) |
Maximum Climbing Angle | 25° |
Proper Temperature | -10~45°C |
Waterproof Level | IP54 |
Battery Type | 18650 Lithium-ion power battery |
Battery Capacity | 18AH (864Wh) |
Battery Rated Voltage | 48V |
Motor Rated Power | 0.25kW |
Motor Form | Assist mode |

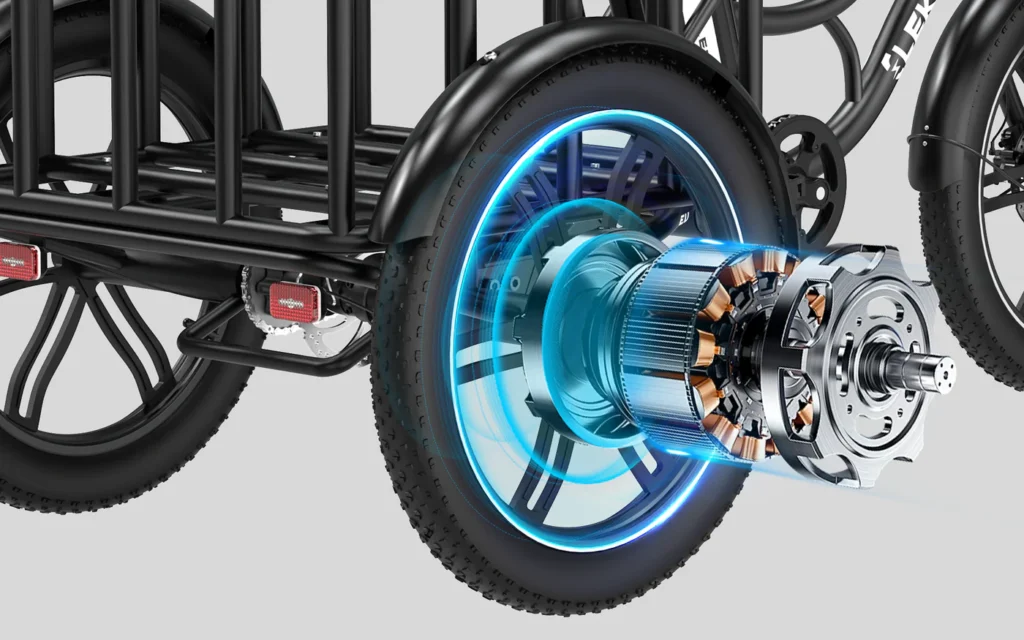

Motor Type | 20-inch high-speed gear / Integrated wheel brushless motor |
Charger Output | 54.6V 2.0A |
Charger Input | 100~240V 50/60Hz 2A |
Undervoltage Protection | 30V |
Overcurrent Protection | 15A+1A |
Charging Time | 7-8 hours |

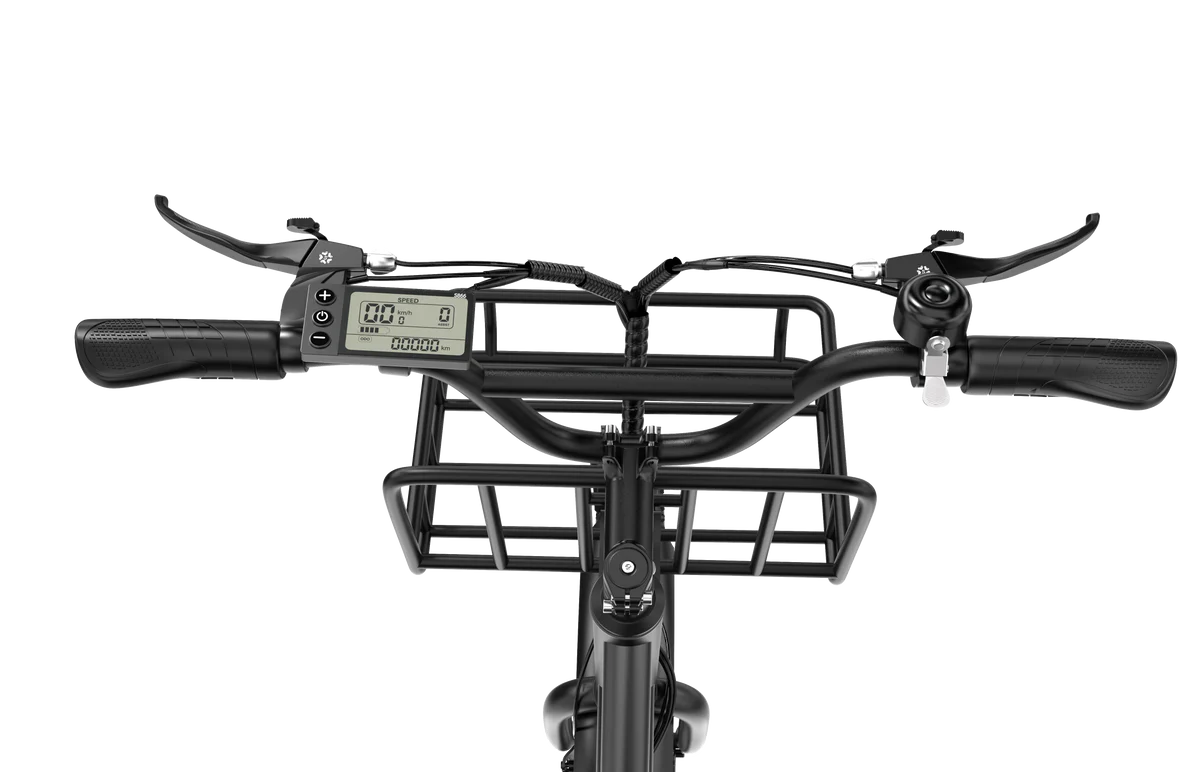

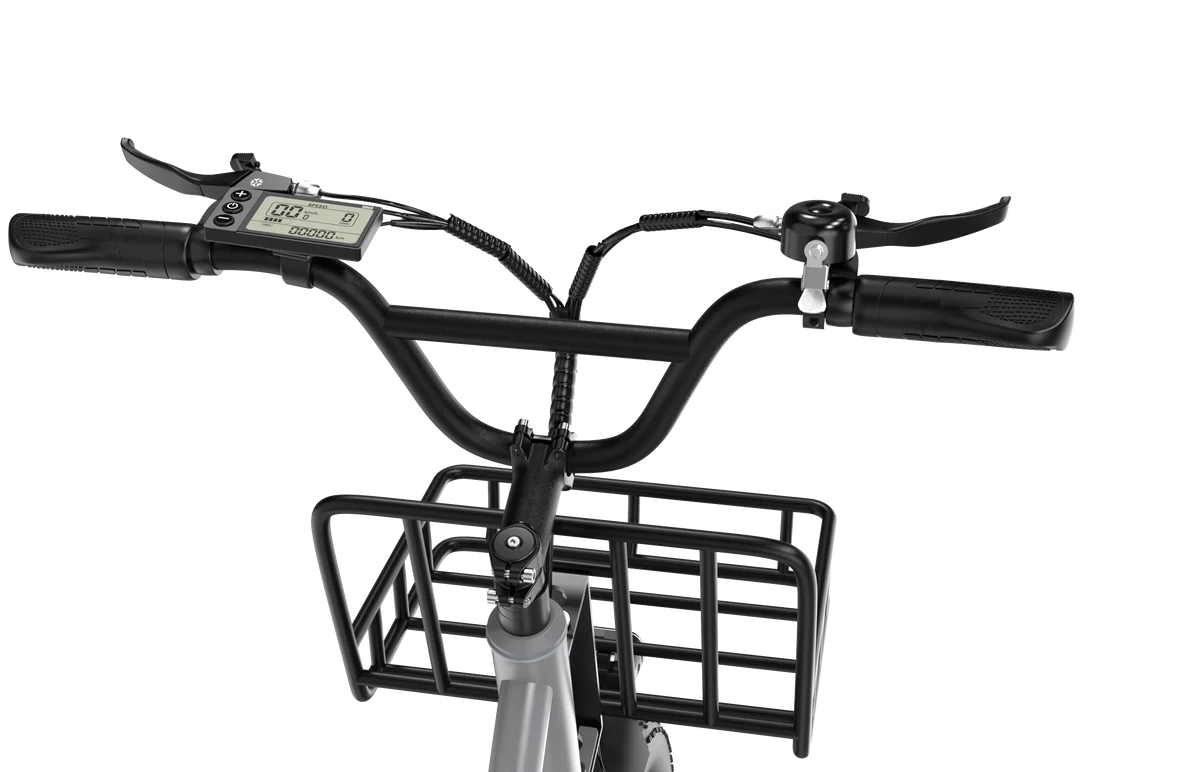

Instrument Display | Multifunctional LCD screen |
Front Lighting | Yes |
Braking Method | Front disc brake + Rear disc brake |
Tire Specifications | Pneumatic tires (20×3.0) |
Air Valve | 20×3.0 The inner tube valve is AV |
Front Fork | Shock fork |
Gear | 7 Speeds transmission |
