Description
Parameter | Specification |
---|---|
Body Material | Carbon Structural Steel |
Color | Black/Silver |
Unfolding Size | 1390mm * 530mm * 1040mm |

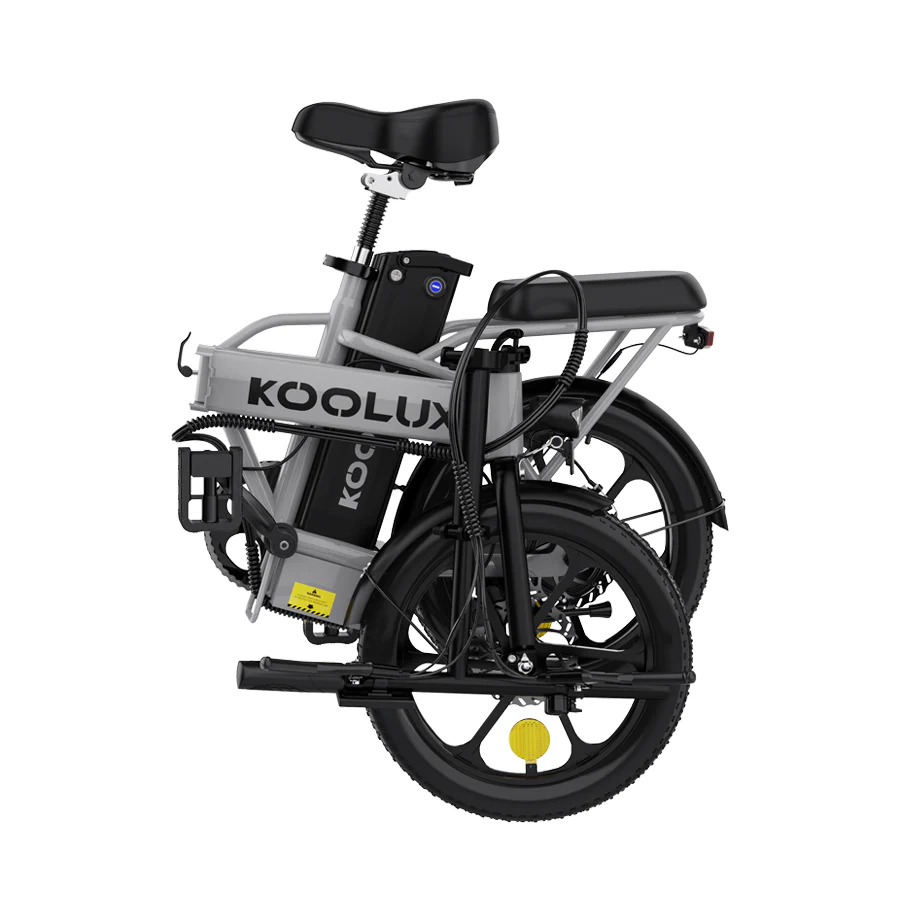

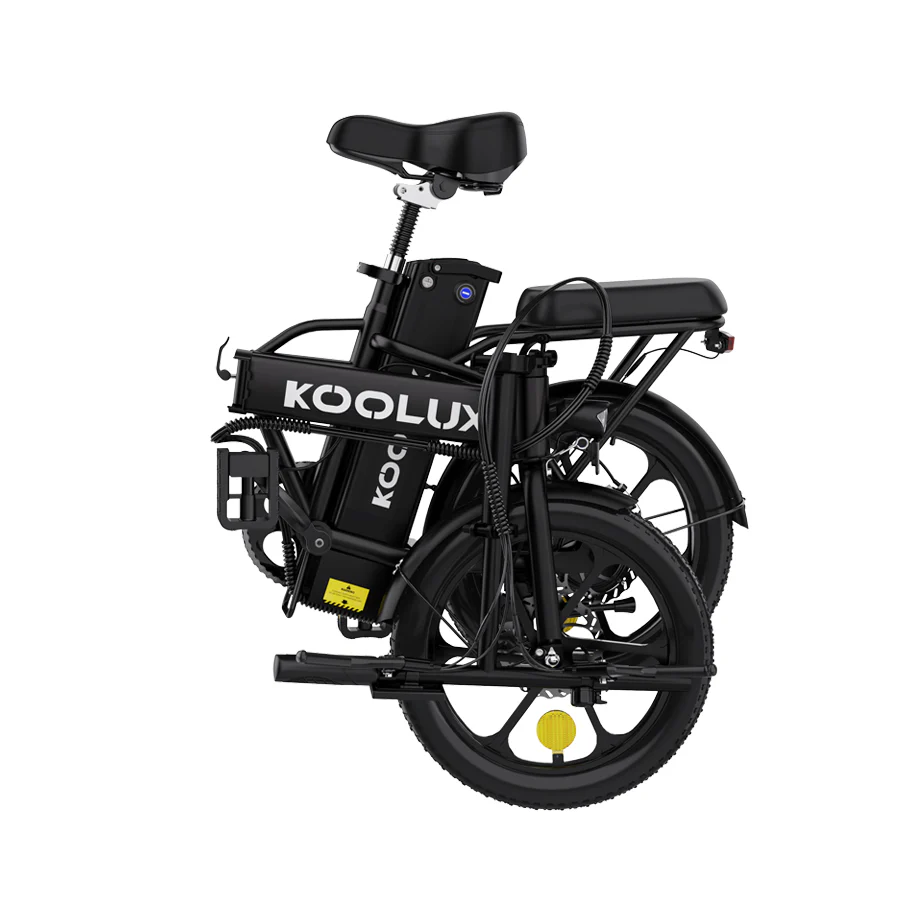

Folding Size | 800mm * 500mm * 680mm |
Hub Form | Integrated Wheel |
Wheel Size | 16 Inches |
Package Size | 860mm * 370mm * 660mm |
Gross/Net Weight | 29.7kg (65.48lb) / 23.8kg (52.47lb) |
Maximum Load | 120kg (264.55 lb) |
Maximum Speed | 25km/h (15.5mph) |

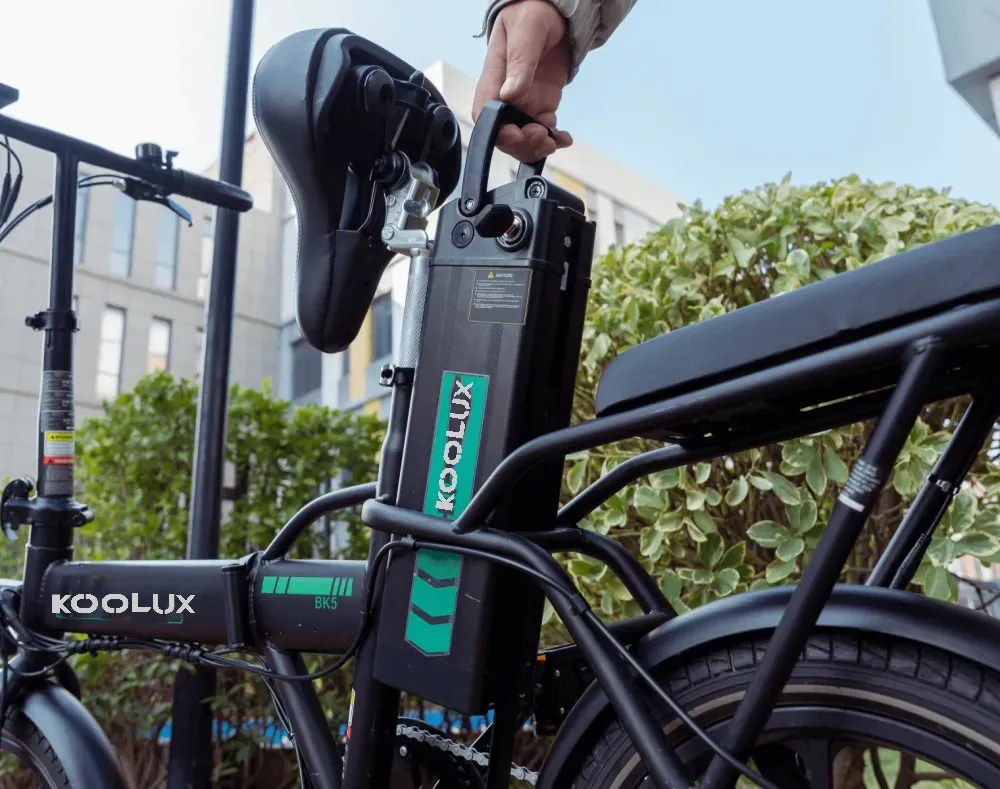

Battery Type | 18650 lithium-ion power battery |
Battery Capacity | 10.4Ah |
Battery Rated Voltage | 36V |
Motor Rated Power | 250W |
Motor Form | Assist mode |
Motor Type | 16-inch high-speed gear integrated wheel brushless motor |
Motor Rated No-Load Speed | 480+10r/min |
Charger Output | 42V 2.0A |
Charger Input | 100~240V 50/60Hz 3.0A |
Undervoltage Protection Value | 29V |
Overcurrent Protection Value | 15A+1A |
Charging Time | 5-6 hours |
Mileage | 35KM-70KM (affected by load, temperature, road conditions, riding mode) |
Instrument Display | Multifunctional LCD screen |

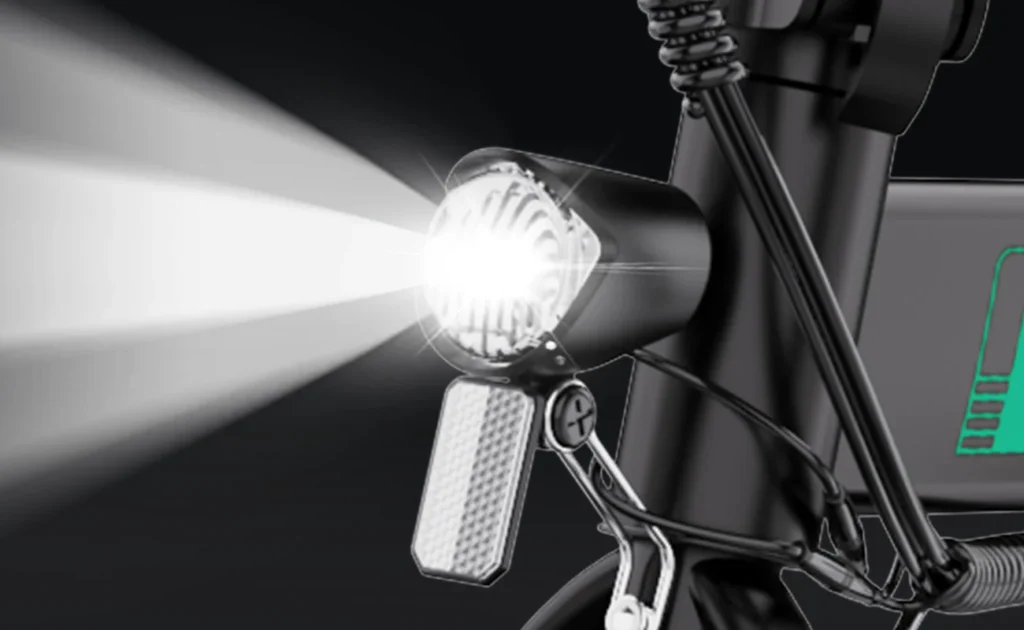

Front Lighting | Yes |
Taillight | Yes |
Braking Method | Front disc brake + Rear disc brake |
Maximum Climbing Angle | 25 degree |
Proper Temperature | -10~45°C |
Waterproof Level | IP54 |
Tire Specifications | Pneumatic tires, 16×3.0, Inner tube valve: AV |
